Product details
Brand | ADI |
Cable Length | 5 Meters |
Capacity | 450TF |
Ingress Protection | IP65 |
Input Resistance | 390 +- 10 Ohms up to 1000 Kgf 770 +- 20 Ohms 1.5 T & Above |
Insulation resistance at 50V DC | >= 1000 M Ohm |
Material | Stainless Steel |
Maximum Safe Overload | 150% FS |
Model | 90610 |
Output Resistance | 390 +- 10 Ohms up to 1000 Kgf 700 +- 7Ohms 1.5 T & Above |
Ultimate Safe Overload | 200% FS |
Zero balance | +/- 1% FS |
Model | : | Â | 90610-B |
Capacity | : | Â | 0 - 50 Kgf to 0 - 450 Tf |
Load Direction | : | Â | Compression only |

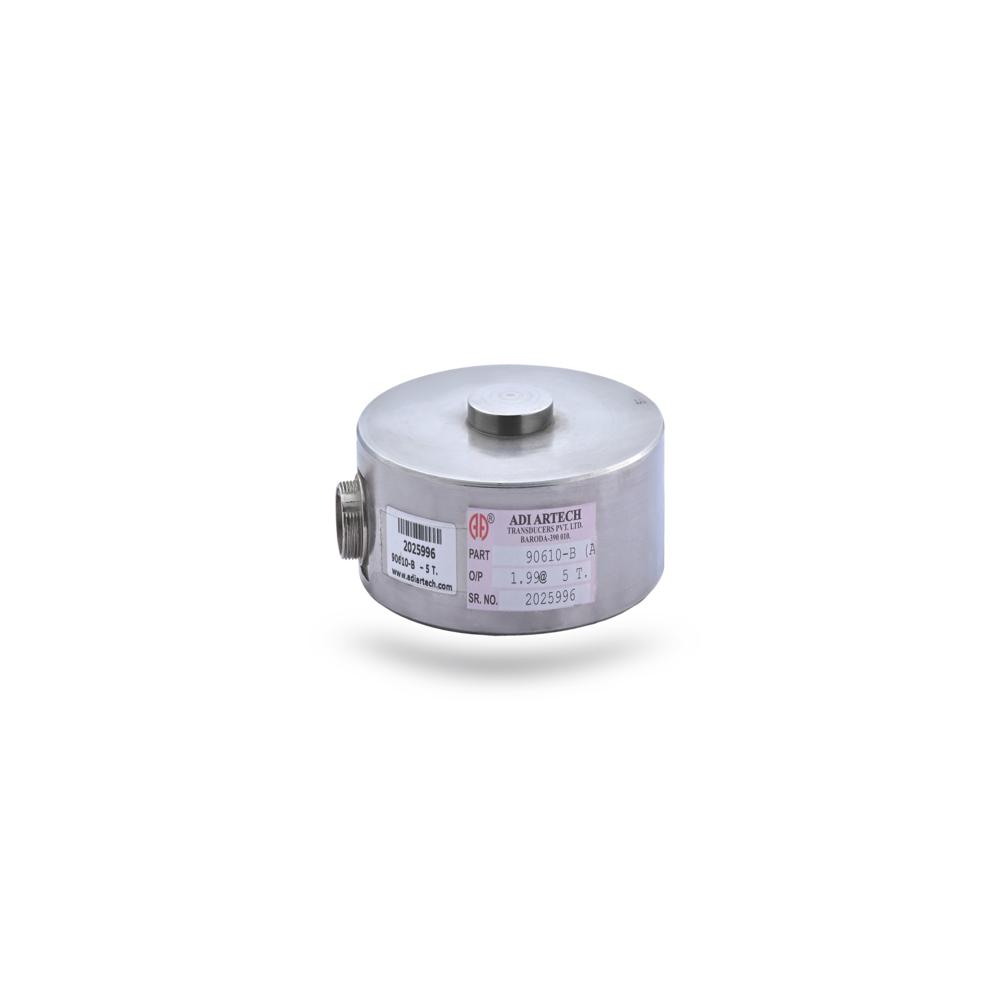

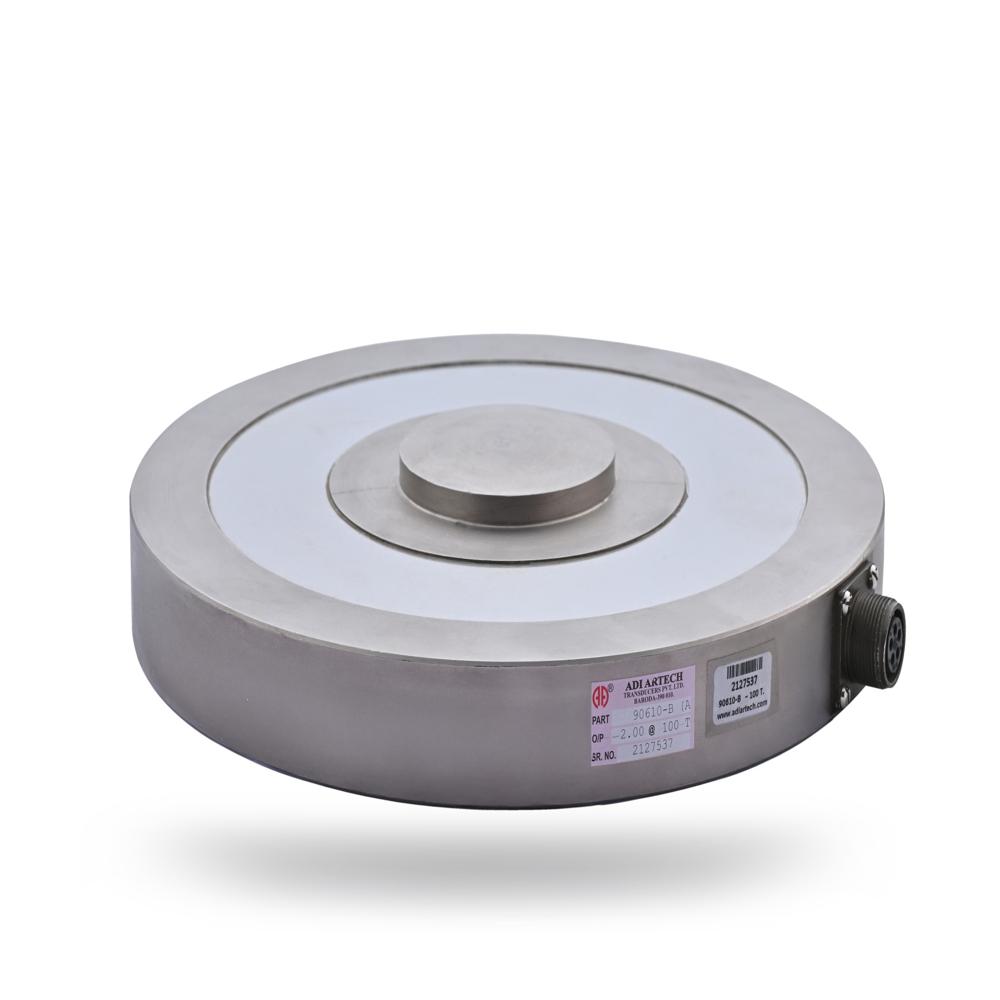

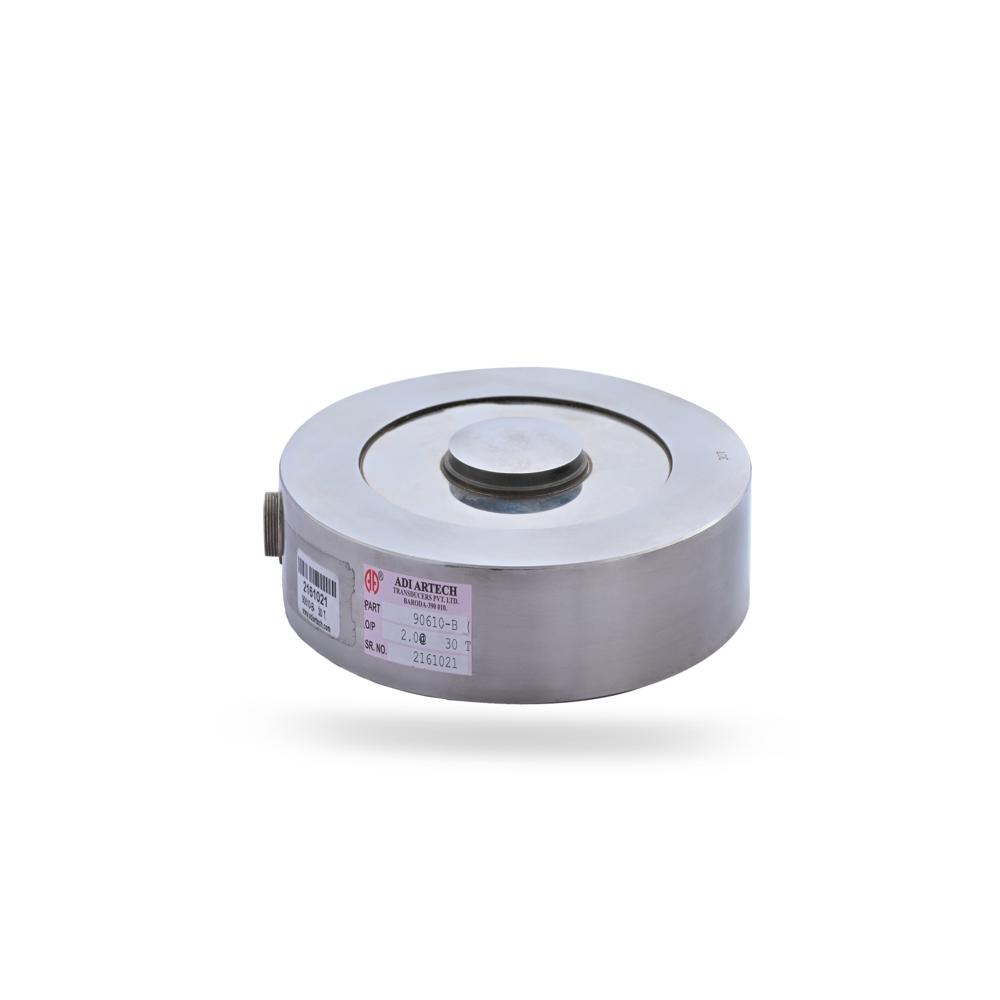

Type | : | Â | Pancake Load Cell |
Industries |
|
Application |
|
Description | : | Â | 90610-B is strain gage based force sensor with temperature compensation over 0 - 60 deg.C. |
Features | : | Â | It is laser welded with IP-68 protection. |
Electronic Instrumentation / Software | : | Â | Compatible Electronic Systems are available optionally- |
